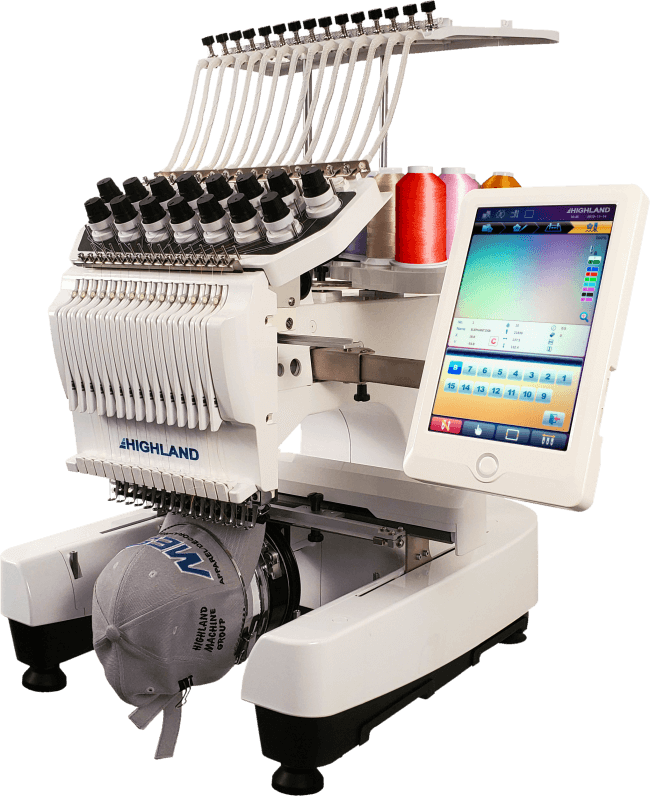

1501 Breeze Embroidery Machine
The 15-needle compact Breeze embroidery machine is the newest addition to the Highland family of embroidery machines. It offers the lowest startup cost for a commercial embroidery machine with professional features such as a huge stitch memory and the patented RPS unbreakable reciprocators. The Breeze is perfect for the home embroiderer, or for brand new business startups, whether a home business or a small shop.
Features
- Wide Cap System
- Embroidery field size 355 x 200mm (14 x 7.8 inches)
- Touch-screen Control Panel 10" Color LCD
- 100 Million Stitch Memory capacity
- 800 Design Memory
- Automatic Thread Trimmer
- Automatic Color Change
- Automatic Thread Break Detection
- Design/data ports: USB
- One-touch Design Trace
- Stitch Filtering
- 110v single phase power (standard wall plug)
- Built In Noise Reduction Technology
- Memory Retention After Shut Down
- Included hoops:
- (1) 60 x 40mm (2.4" x 1.6")
- (1) 100 x 100mm (3.9" round)
- (1) 360 x 200mm (14" x 7 7/8")
- (1) 15 x 15cm (5.91" round)
- (1) 18 x 18cm (7.09" round)
- (2) cap frames
View/Download PDF BrochureSee It In Action
EZ Change 270° Cap System
The EZ Change Cap System not only allows you to switch from flats to caps in seconds, it also allows designs to wrap at up to 270° around the cap. Imagine the design possibilities!

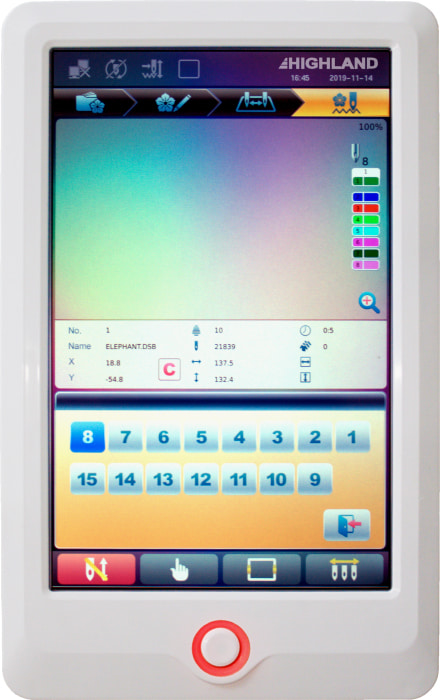

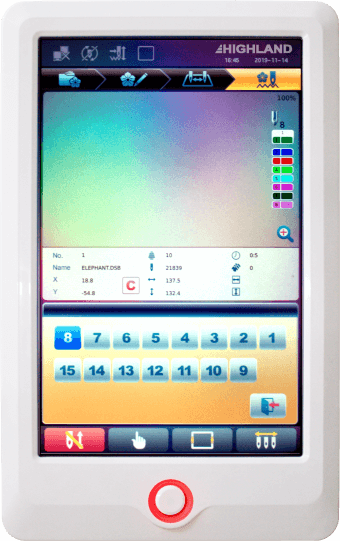

Control Panel with LCD Screen
With the high definition touch-screen LCD control panel editing & design previewing is easy. Features such as satin width adjustment & the 100 Million Stitch Memory give you the ability to create flawless embroidery at any size!
- Control Panel features a 10" Touch-Screen Color LCD Display
- User-friendly menu makes it easy to read and quickly identify production information
- USB Port for loading designs from USB flash drives
- One-Touch Design Tracing - easily trace the design to ensure accurate placement before ever sewing a stitch by simply pressing a button
- Scale size of designs up or down
- Manual/automatic offset - frame can easily be returned to the previous position by selecting the option, or set to automatically return to the previous offset position when a job is completed
- Rotate or Mirror Image
- Origin Return - easily return to the starting point of the design
- Floating - Moves frame forward or backward through design without stitching
USB Drive Design Transfer
USB flash drives are inexpensive, portable and convenient. The USB flash drive allows the operator to transfer one design or hundreds to the machine quickly and easily.
RPS Reciprocator Protection System
With the patented RPS Reciprocator Protection System you never have to worry about your business being down because you struck a hoop. With other embroidery machines, striking a hoop can easily break the plastic reciprocator, making your machine unusable until repaired, possibly for days if you cannot do the repair yourself.
This revolutionary unbreakable reciprocator is metal, not plastic, and therefore cannot be broken by simply striking a hoop with the needle. Instead of breaking an expensive part of your machine, a small plastic post will break off, which can easily and inexpensively be replaced. When this post is broken, it puts that one needle out of order, instead of the entire sewing head. By reprogramming the color to another needle (and re-hooping the garment so you don't strike the hoop again) you are back in business! You can then repair the RPS system at your convenience.
Watch this video to see how fast and easy it is to get back up and running after a hard hoop strike that would put other embroidery machines down for repairs.
Machine Specifications
Highland Embroidery Machine Warranty
Five year limited warranty coverage for your Highland embroidery machine.
Service and Support
Expert 800 Phone Support is included with every purchase of new equipment or software. The mission of our friendly and patient support staff is to get you back up and running as quickly as possible, saving you time and money, and most support calls are actually resolved over the phone. If your issue cannot be resolved by phone, factory trained technicians are available for on-site service. Visit our website for answers to frequently asked questions, or step-by-step instructions for many tasks.
Machine Training
Training is included with each machine and software purchase from MESA. Single-head embroidery machine prices include training at a MESA training center or one-on-one online video conference training. Full-size multi-head embroidery machine prices include onsite training at customer's location. Onsite training may also be purchased with single head machines. Visit our training page or ask your sales representative for more details.
